Vim Li Cas Lub Hauv Paus Kawg Ntawm EDI tsis tuaj yeem yog Ib Leeg -Pass RO

1. Kev xav tsis thoob

1.1 Qhov twg "ib zaug- dhau RO + EDI txaus" Los ntawm

Thaum ntau tus neeg kos cov txheej txheem dej ultrapure (UPW) ntws thawj zaug, lawv instinctively sau "pretreatment → ib zaug- dhau RO → EDI → polishing." Kev sib xyaw ua ke zoo li muaj laj thawj: RO twb tau thaiv feem ntau ntawm cov ntsev thiab ions, yog li EDI tsuas yog xav kom ua tiav txoj haujlwm. AMuab ob npaug rau RO System Rau EDI Pretreatmentfeem ntau raug tso tawm los ntawm cov neeg pib ua "dhau-tsim" - tom qab tag nrho, ib qho thib ob - dhau RO txhais tau tias ib qho siab dua - lub twj tso kua mis siab, ib lub siab ntau dua - lub nkoj khib, thiab ib qho ntxiv zog dhau. Vim li cas ho tsis nyob nrog ib daim ntawv hla tebchaws?

Lub hauv paus ntawm qhov kev xav tsis zoo no yog qhov yooj yim: txhua tus tau hnov ​​​​tias "RO muaj qhov tsis lees txais ntsev ntau," thiab ib txwm xav tias "siab" txhais tau tias "siab txaus." Tab sis feem ntau rau txim ntawm desalination yog precisely "qhov kawg feem." Ib qho - dhau RO thaiv ntau dua 99% ntawm txhua yam, tab sis qhov kev txiav txim siab seb EDI nyob ntev thiab ua haujlwm ruaj khov yog raws nraim qhov feem cuam tshuam. Betting ib qho kev ntseeg siab ntawm qhov xau yog qhov qhib ntawm txhua EDI zaj dab neeg ntxov ntxov.

1.2 Tus nqi tiag tiag tom qab qhov kev xav tsis tseeb

Pub ib zaug - dhau RO permeate ncaj nraim rau EDI tej zaum yuav zoo nyob rau ntawm qhov ntsuas qhov tiv thaiv ib ntus, tab sis teeb meem tshwm sim tom qab ob peb lub hlis: pawg voltage drift, resin hardening, scaling ntawm lub mloog pob ntseg, thiab soaring tu zaus. Thaum lub sij hawm EDI module muaj hnub nyoog ntxov ntxov thiab lub qhov hluav taws xob resistivity poob ntawm spec, taug qab qhov ua rau feem ntau ua tsis tau - nws puas yog RO tsis thaiv, lossis EDI nkees ntawm nws tus kheej? Peb tau pom ntau txoj haujlwm nyob qhov twg, kom txuag tau ib thib ob - dhau RO mus rau pem hauv ntej, lawv tom qab them nyiaj nrog tag nrho EDI pawg lub neej thiab rov ua haujlwm kaw. Daim nqi ntawd yuav luag tsis suav thaum lub sijhawm sib tw.

2. Tsim kom muaj kev nkag siab ua ntej: RO tsis lees paub dab tsi yog "them"

2.1 Lub Membrane ua haujlwm li cas

Yuav kom nkag siab txog dab tsi ib zaug dhau los, ua ntej nkag siab tias RO membrane ua dab tsi. Ib qho rov qab -osmosis membrane yog qhov tseem ceeb "sieve uas saib tus nqi thiab qhov loj": rau cov ions them nyiaj (sodium, calcium, chloride), ua ke nrog kev kub siab thiab hydrated radius, nws thaiv lawv zoo; rau me me molecules nws kuj catches feem ntau. Tab sis ib zaug ib yam khoom muaj nyob rau hauv daim ntawv "neutral, uncharged, thiab membrane-permeable", rejection poob ntawm pob tsuas. Qhov teeb meem yog tias cov dej ntuj muaj ntau yam kab mob tseem ceeb uas tsis raug them los ntawm pH nruab nrab.

2.2 Vim li cas "Qhov Kawg" yog qhov nyuaj tshaj plaws

Kuj tseem muaj qhov cuam tshuam -intuitive point: txawm tias qhov kev tsis lees paub RO siab npaum li cas, qhov seem seem yog proportional rau qhov pub concentration. Qhov siab dua qhov noj salinity, qhov loj dua qhov tseeb uas ntws los ntawm tib qhov kev tsis lees paub. Yog li qhov "leak" tsis yog ib qho teeb meem nkaus xwb tab sis qhov tseeb - teeb meem loj. Rau ib qho khoom siv nrog lub qhov rais nqaim heev zoo li EDI, qhov loj loj tseem ceeb tshaj qhov feem ntau - txawm tias ib lab ntawm cov tawv tawv los ntawm kev sib sau txaus ntau lub hlis los tsim cov pob zeb ntawm cov resin uas kev tu ib txwm tsis tuaj yeem tshem tawm tag nrho.

3. Dab tsi Ua Ib Ib Leeg - Dhau RO Tiag Tiag?

3.1 Cov pa roj carbon dioxide: Tsuas yog cov roj uas taug kev los ntawm cov Membrane

Cov pa roj carbon dioxide yog ib qho nruab nrab roj molecule, NW nyuam qhuav tsis lees paub los ntawm RO daim nyias nyias, thiab hla ncaj qha nrog cov permeate. Nyob rau sab permeate nws recombines nrog dej rau hauv carbonic acid, rub pH down thiab conductivity. Hauv lwm lo lus, kev mob siab rau ib leeg ntau dua - dhau RO tshem tawm cov ntsev, qhov tseem ceeb CO₂ dhau los ua cov ntsiab lus txheeb ze - vim tias txhua yam ploj mus, tab sis nws coj lub qhov rooj rov qab. Qhov "acid load" no tag nrho ntawm EDI, nws qhov kev ua tau zoo ntawm kev tuav cov kua qaub dawb yog qhov phem dua li kev tuav cov ntsev ionized. Ntau subtly, CO₂ kuj ntxiv rau EDI mloog zoo sab, tsis ncaj qha nce voltage thiab siv zog.

3.2 Silica: Tus nqi tsis lees paub uas yog overrated

Silica muaj nyob rau hauv ntuj thiab txheej txheem dej; ib zaug - dhau RO qhov kev tsis lees paub ntawm nws zoo li tsim nyog, tab sis thaum cov dej ntws qis yog lub boiler lossis EDI, qhov yuav tsum tau muaj yog qhov seem qis heev. Muaj qhov kev ua lej siab phem nyob ntawm no: txawm tias muaj kev tshem tawm tag nrho siab heev, cov silica seem maj mam tso rau ntawm EDI ion- pauv cov resin nto thiab sab hauv pawg pawg. Nws tsis clog koj ib zaug; nws siv sijhawm ntau lub hlis los tsim lub plhaub tawv ntawm cov khoom tseem ceeb, thiab ib zaug tsim, kev tu niaj hnub tawm tsam kom tshem tawm tag nrho.

3.3 Boron thiab Weakly Ionized Hom: Yuav luag tsis lees paub thaum nruab nrab

Boron tshwm sim raws li boric acid ntawm nruab nrab pH - ib qho molecule uncharged RO daim nyias nyias tsis lees txais tsis zoo. Ib daim ntawv teev ntev ntawm cov tshuaj tsis muaj zog ionized zoo sib xws yog "tsis pom" ntawm qhov nruab nrab: daim nyias nyias tsis pom lawv, tsis tuaj yeem ntes tau. Tsuas yog los ntawm kev nce pH kom ionize lawv mus rau hauv cov ntawv them nyiaj tuaj yeem ua rau daim nyias nyias lob lawv. Txawm li cas los xij, ib leeg - dhau RO permeate yog qhov nruab nrab tsis zoo- rau -acid - muab cov tshuaj no rau lub qhov rais pub dawb. Ib leeg, lawv cov nyhuv yog txwv, tab sis nyob rau hauv boron-sensitive irrigation los yog cov txheej txheem tshwj xeeb, cov tsub zuj zuj yog tsis negligible.

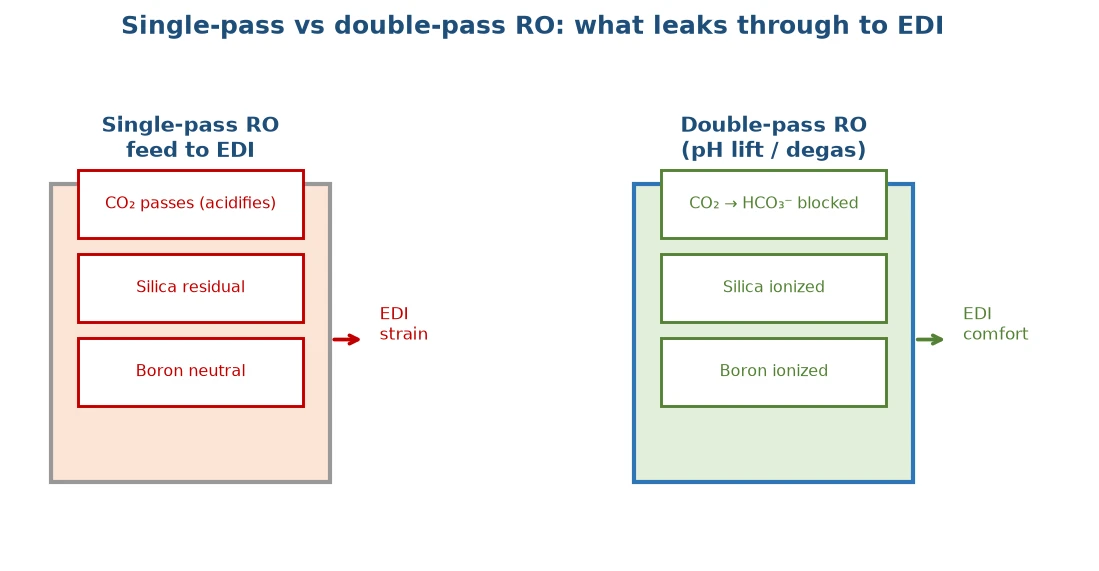

Daim duab: Ib qho - dhau vs ob npaug - dhau RO: dab tsi los ntawm EDI (CO2 / silica / boron)

4. EDI Tsis yog "Kev Kho Thib Ob" - Nws yog Polisher

4.1 Yuav Ua Li Cas Ua Rau Nws Ua Tau Zoo

Electrodeionization (EDI) yog qhov tseem ceeb "hluav taws xob regenerated mixed- txaj ion pauv": dej ntws los ntawm cov resin-filled dilute chambers bounded by cation- thiab anion-selective membranes; DC teb rub cov ions mus rau hauv cov chaw mloog zoo thaum dej -sib H⁺ thiab OH⁻ tsis tu ncua rov tsim cov resin, yog li tsis muaj kua qaub lossis caustic. Lub mechanism yog elegant, tab sis nws presupposes huv heev pub. EDI ua tau zoo ntawm "ua tiav- cov dej ntshiab huv," tsis yog "tshem cov dej uas tseem nqa cov impurities." Thaum hardness, silica, CO₂, chlorine, los yog organics tshaj nws kam rau ua, resin thiab pawg raug kev txom nyem ua ke.

4.2 Qhov Kev Pom Zoo Tshaj Plaws Tshaj Tawm

Hardness ions tsim nyuaj-rau-reverse scaling ntawm resin nto; silica enriches ntawm cov concentrates thiab crusts daim nyias nyias thiab cob; dawb chlorine ncaj qha oxidizes daim nyias nyias thiab cob; organics nteg ib biofilm rau ntawm resin txaj. Txhua tus ib leeg tsis tuag, tab sis ua ke lawv so haujlwm EDI module ntxov. Qhov phem tshaj, EDI module yog kim, thiab thaum nws ua tsis tiav tag nrho UPW kab nres. Yog li "tiv thaiv EDI's pub" yeej tsis yog qhov zoo -rau- muaj - nws yog txoj kab ntawm tag nrho cov kab. Feem ntau - tsis pom qhov tseeb: thaum EDI module tuag, nws tsis tshua muaj EDI qhov txhaum; nws yog RO pem hauv ntej tsis saib lub rooj vag.

5. Ob Chav Pass RO Yog Tus Saib Xyuas ntawm EDI

5.1 The Second Pass Re-scoops "Leakers"

Lub tswv yim tseem ceeb ntawm Ob Chav Pass RO System Rau EDI Pretreatment yog xa ib zaug - dhau RO permeate los ntawm ob lub membrane array. Vim tias qhov thib ob -pass pub tau huv heev (tsawg ntsev, tsis tshua muaj SDI), nws tuaj yeem khiav ntawm kev rov zoo siab, thiab nws cov concentrate yog huv txaus kom rov qab mus rau thawj zaug -pass pub - yog li tag nrho cov dej poob yog me me. Qhov tseem ceeb tshaj, qhov thib ob muab qhov sib sib zog nqus desalting polish ntawm "twb- dej huv," thawb cov ntsev seem, silica, thiab boron mus rau qib EDI tuaj yeem lees txais ruaj khov. Qhov kev cheb zaum ob no yog qhov kev nyab xeeb ntawm ib qho kev hla tsis tuaj yeem muab.

5.2 Qhov Interstage pH Lift yog qhov Trick tiag

Dab tsi tiag tiag hloov qhov thib ob - dhau RO yog cov tshuaj lom neeg ntawm ob theem. Ua ntej thawj -pass permeate nkag mus rau qhov thib ob, caustic tuaj yeem raug txhaj tshuaj kom nqa pH mus rau qhov tsis muaj zog -alkaline ntau yam: yaj CO₂ hloov mus rau bicarbonate (them, tsis lees paub los ntawm daim nyias nyias), thiab silica thiab boron hloov ntawm nruab nrab molecules rau ions them (tseem tsis lees paub). Cov kauj ruam no yuav luag tsis yooj yim sua rau thawj zaug - dhau RO - cov dej tawv tawv yuav ntsuas lub sijhawm pH nce; tab sis qhov thib ob -pass pub yog twb huv lawm, yog li nqa pH tsis muaj kev pheej hmoo loj. Yog li tus nqi ntawm Double Pass RO System Rau EDI Pretreatment yog 70% nyob rau hauv qhov thib ob pass thiab 30% nyob rau hauv uas pH kauj ruam; tsis ua haujlwm yam tsis muaj lwm tus.

5.3 Degasification raws li Lwm Txoj Kev

Yog tias ib qhov project tsis nyiam noj cov tshuaj caustic, lub membrane contactor los yog lub tshuab nqus tsev nqus tsev vacuum ntawm cov kis tau tuaj yeem ua rau lub cev nqus tau CO₂, zoo li txo qhov thib ob -pass acid load. Txoj kev no txuag tau koob tshuaj tab sis ntxiv ib chav tsev thiab muaj kev cuam tshuam ntau dua rau kev ua haujlwm. Txawm hais tias nqa pH lossis degassing daws tib yam teeb meem - khaws CO₂ tawm ntawm EDI. Qhov twg los xaiv yog nyob ntawm koj qhov dej zoo, kev saib xyuas tus cwj pwm, thiab kev noj tshuaj -kev ua raws li cov kev xav tau, tsis yog qhov zoo tshaj plaws.

6. Thaum Koj Muaj Peev Xwm Hla Dhau Daim Npav Ob

6.1 Yam tsawg kawg uas pub pub dawb huv heev

Yog hais tias cov dej nyoos twb siab lawm - cov dej softened zoo, los yog tom qab nruj pretreatment CO₂ thiab hardness yog ob qho tib si tsis tshua muaj neeg, ib zaug xwb - dhau RO permeate tej zaum yuav twb zaum nyob rau hauv EDI lub kam rau ua qhov rais. Nyob rau hauv tas li ntawd, yuam ib ob pass yog tseeb tshaj -tsim. Tab sis "zoo heev" yog ib qho kev xav uas yuav tsum tau dag los ntawm dej- kev tshuaj ntsuam xyuas, tsis yog qhov kev xav tsis zoo - feem ntau cov dej hauv av tsis yog qhov zoo tagnrho. Peb qhov kev txiav txim pom zoo: tau txais daim ntawv tshaj tawm ua ntej, tom qab ntawd tham txog kev teeb tsa, tsis yog rov qab.

6.2 Kev Pom Zoo ntawm Degas + Softening Hloov

Qee qhov haujlwm siv cov dej ntws tawm kom tshem tawm cov tawv tawv ua ntej, tom qab ntawd degassing rau strip CO₂, rub ib zaug - dhau RO permeate rau hauv EDI lub qhov rais. Cov kev cuam tshuam zoo li no ua haujlwm rau cov dej tshwj xeeb tab sis ua rau cov txheej txheem nyuaj thiab kev saib xyuas xav tau ntau dua. Hauv lwm lo lus, kev hla dhau ob zaug yog qhov zoo, tab sis koj yuav tsum siv lwm txoj hauv kev kom rov qab tau cov "cov cim qhia tawm," lossis daim nqi yuav xaus rau ntawm EDI. Kev sib haum xeeb tsis yog rho tawm; nws yog hloov ib txheej ntawm kev ntsuas nrog lwm tus, thiab tag nrho cov complexity tsis tas yuav qis dua.

7. Ib qho Kev Txiav Txim Siab Ua Haujlwm

Distilled tag nrho cov saum toj no rau hauv ib txoj kab kev txiav txim siab: thaum koj muaj cov ntaub ntawv raw - dej, ua ntej saib CO₂ thiab alkalinity - yog siab, ib zaug - pass permeate yuav acidic thiabEDI dej kho qhov systemyuav raug kev txom nyem, yog li ib tug thib ob pass (los yog degassing) yog warranted; ces saib silica thiab boron - yog siab, interstage pH nqa yuav luag, vim hais tias tsuas yog daim ntawv ionized yog tsis lees paub; Thaum kawg saib cov nqes dej - boilers, pharma, thiab microelectronics muaj "rigid" purity xav tau qhov twg ib tug thib ob pass yog NW nyuam qhuav sib tham, thaum zoo tib yam txheej txheem dej yuav flexibly cuam tshuam ib tug dej zoo.

Thaum peb cov kab lus teb, seb puas yuav siv ob npaug thiab qhov twg siv los ua kom pom tseeb; dab tsi tseem yog engineering kom muaj nuj nqis. Tus nqi ntawm lub moj khaum no yog tig "peb puas xav tau kev hla ob zaug" los ntawm kev kwv yees rau hauv kev txiav txim siab engineering tsis raug - yog li thaum twg ib tus neeg tawm tsam koj qhov kev teeb tsa, koj tuaj yeem taw tes rau ntawm daim ntawv qhia dej thiab kab no es tsis txhob nkaum tom qab "kev lag luam ua li no."

Yog tias koj tuaj yeem nco tau ib kab lus xwb: cia qhov thib ob - dhau RO daws qhov peb yam uas ib zaug dhau tsis tuaj yeem - CO₂, silica, boron - es tsis kho nws li qhov "desalt it again" peev. Ib kab lus ntawd ib leeg thaiv txog ib nrab ntawm tag nrho tshaj -tsim thiab ib nrab ntawm tag nrho hauv qab - tsim.

8. Kaw: Dej Ntsuas Ua Ntej → Dej Qib Tom ntej → Them Rov Qab Kawg

Rov qab mus rau cov txheej txheem engineering: ntsib ib qho EDI pem hauv ntej -kawg configuration, tsis txhob maj mus xaiv "ib zaug lossis ob zaug."Ua qhov dej sib npaug ua ntej- dej nyoos ntau npaum li cas, qhov hloov pauv ntau npaum li cas, qhov twg cov concentrate mus;ces muab qib dej zoo- qhab nia cov dej nyoos CO₂, silica, boron, hardness, thiab chlorine tiv thaiv EDI lub qhov rais kam rau ua kom pom cov band twg ib leeg -pass permeate poob rau hauv;Thaum kawg suav lub sijhawm them rov qab- hnyav qhov thib ob- dhau RO lub peev thiab lub zog tawm tsam EDI module lub neej thiab kaw qhov poob nws yuav cawm tau koj. Taihe Environmental Protection tau sau ntau qhov teeb meem engineering hauv ob npaug - dhau rov qab osmosis thiab EDI pretreatment, thiab meej nrog qhov "dej sib npaug - dej grading - payback" logic pab cov neeg muas zaub kaw lawv UPW kab ruaj khov rau hauv lub qhov rais kam rau ua, es tsis txhob patching tej yam tom qab lawv tawg.
