Kev Xaiv Thiab O&M Ntawm Ob -Pass RO + EDI: Kev Ntsuas Dej, TCO, Thiab Kev Ua Haujlwm Tsis Ua Haujlwm

1. Qib qhov pub thawj zaug: Tsis txhob maj mus xaiv ib zaug lossis ob zaug

1.1 Tus Nqi Tshaj - thiab Hauv qab - Tsim

Xaiv EDI pem hauv ntej kawg yooj yim poob rau hauv ob qhov siab: ua raws li lwm tus mus rau ob qhov dhau los thiab nyuaj - siv cov cuab yeej siv tau yooj yim (tshaj -tsim), lossis txuag ib thib ob dhau los tsuas yog khiav EDI pub ntev- lub sij hawm ntawm ntug qis ntawm lub qhov rais kam rau ua, ua rau ntxov ntxov module laus thiab nquag kaw (hauv qab{3}). Ob leeg ua rau tag nrho tus nqi ntawm kev ua tswv cuab (TCO) dab tuag - ib qho "pom tseeb kim," lwm tus "nyem tus nqi." Seb aMuab ob npaug rau RO System Rau EDI Pretreatmentyog warranted yuav tsum tau txiav txim siab los ntawm dej zoo, tsis yog los ntawm kev siv nyiaj intuition. Kev txiav txim siab configuration ntawm "lwm tus ua nws ib yam nkaus" yog qhov feem ntau unexamined assumption nyob rau hauv engineering.

1.2 Yuav Ua Li Cas Nyeem Daim Ntawv Qhia Txog Dej

Nrog rau cov ntaub ntawv raw - dej tag nrho tsom xam, saib plaub yam ua ntej: CO₂ (los yog alkalinity, uas teev permeate acid load), silica, hardness, boron. Tom qab ntawd cov tshuaj chlorine thiab TOC, uas teeb tsa ua ntej thiab daim nyias nyias oxidation txaus ntshai. Cov qhab nia no tawm tsam EDI lub qhov rais kam rau ua thiab koj tuaj yeem txiav txim siab qhov band twg ua ntej -pass permeate poob rau hauv - yog tias twb Zoo / Zoo, ib qho dhau los yuav txaus; yog tias nws poob rau Fair/Poor, qhov thib ob pass yuav tsum tshwm sim. Qhov no "qib thawj, xaiv tom qab" kev txiav txim siab ntau dua li cov qauv qhia pom thiab tiv taus kev tshuaj xyuas thiab cov neeg siv khoom sib tw zoo tshaj plaws.

2. Qhov nyuaj ntawm kev xaiv

2.1 Volume thiab Peak

Ib qho UPW system yuav tsum muaj qhov loj me los ntawm "tag nrho txhua hnub + lub sijhawm siab tshaj + kev noj tsis tu ncua," tsis yog qhov nruab nrab ib leeg. Qhov thib ob - dhau RO thiab EDI kev ntaus nqi yuav tsum sib npaug rau lub ncov, thiab lub tank interstage yuav tsum tsis hloov pauv. Qhov loj ntim tsis raug thiab txhua yam khoom siv downstream ua raws li tsis raug. Ntau qhov chaw ' khib "nruab nrab hnub, dej nyab los ntawm hmo ntuj" phenomena taug qab rau ntim xam uas tsuas yog siv qhov txhais tau tias.

2.2 Dej-Kev Ua Haujlwm Zoo

Kev xaiv tsis yog "xaiv tus qauv" tab sis daim ntawv qhia cov khoom siv membrane, desalting tier, thiab dosing point ib - rau -ib qho rau koj daim ntawv qhia dej. Piv txwv li, siab nyoos silica ua interstage pH nqa yuav tsum tau; siab CO₂ uas tsis muaj lub siab xav ua kom lub degasser tsim nyog. Txhua qhov kev txiav txim siab teeb tsa yuav tsum pom nws lub hauv paus hauv daim ntawv qhia dej. Kev xaiv cais tawm ntawm daim ntawv tshaj tawm yog sau cov ntaub ntawv sib txawv nrog koob hmoov (piv txwv li, twv qhov teeb tsa).

2.3 Zog thiab Hneev taw

Qhov thib ob - dhau RO ntxiv ib lub siab - lub twj tso kua mis siab thiab lub nkoj khib, yog li lub zog thiab hneev taw yog qhov loj dua ib zaug dhau. Tab sis vim hais tias nws cov khoom noj yog huv si thiab mloog zoo rov qab, lub zog tiag tiag increment yog tsis txaus ntshai tshaj li xav. Rau hneev taw, skid-mounting stacks ob qhov hla thiab EDI ua ke, feem ntau txuag qhov chaw piv rau cov txheej txheem cais. Ob qho tib si yuav tsum tau ntsuas nyob rau theem tsim, tsis suav tias yog.

2.4 Cov khoom siv thiab qib huv huv

Pharma thiab zaub mov qib tsim cov khoom siv ntxiv: cov kav dej, tso tsheb hlau luam, thiab cov hlab ntsha feem ntau xav tau cov hlau tsis muaj steel, huv li qub, thiab muaj peev xwm ua kom huv huv. Cov no nyob rau hauv lem cuam tshuam li cas qhov thib ob pass thiab interstage yog nteg tawm. Kev txiav txim siab txog qib huv si thaum xaiv zam qhov tsis txaus ntseeg "cov khoom siv tuaj txog tab sis tsis tuaj yeem xeem dhau." Cov khoom siv yuav tsum tsis yog "qhov kim dua qhov zoo dua" tab sis "qhov tseeb dua qhov zoo dua."

3. TCO Saib: Cov peev nyiaj siab tsis txhais tau tias kim

3.1 Qhov Thib Ob -Pass Capital muaj li cas

Qhov thib ob - dhau peev yog qhov tseem ceeb tshaj qhov siab dua - lub twj tso kua mis siab, ib lub nkoj khib thiab cov txheej txheem membrane, ntxiv rau kev sib tshuam (dosing lossis degassing) piping thiab cov twj paj nruag. Pom ib leeg, nws yog qhov tseeb me ntsis siab dua ib zaug dhau. Tab sis peev tsuas yog ib daim me me ntawm TCO; tom qab nws zaum hloov zaus, kaw qhov poob, tshuaj ntxuav, thiab lub zog. Kev txiav txim siab ntawm peev ib leeg yog zoo li kev txiav txim siab ua yeeb yaj kiab los ntawm tus nqi pib.

3.2 Nws cawm koj li cas

suav nws tag nrho: los ntawm kev tuav EDI pub rau hauv lub qhov rais kam rau ua, qhov thib ob hla ncaj qha txuas EDI pawg lub neej, txo qis cov khoom siv tu ntau zaus, thiab txo qis kev kaw tawm ntawm - ntawm - qhov hluav taws xob tshwj xeeb. Rau boiler, pharma, thiab microelectronics - qhov twg "shutdown yog hnyav poob" - qhov kev cawm dim poob feem ntau deb tshaj qhov thib ob pass lub peev. Yog li kev ntsuam xyuas Ob Chav Pass RO System Rau EDI Pretreatment ib txwm txhais tau tias TCO, tsis yog thawj kab ntawm cov lus tsocai.

3.3 Yuav Ua Li Cas Piav Tsab Cai no rau Kev Txiav Txim-Cov Neeg Ua Haujlwm

Thaum piav qhia rau kev tswj hwm lossis cov neeg siv khoom, tsis txhob cia li hais tias "thib ob dhau los zoo dua" - hais tias "thib ob dhau mus txuas ntxiv qhov xav tau EDI module lub neej ntawm X xyoo mus rau Y, txiav kev kaw tsis tau npaj tseg los ntawm ob peb lub xyoo mus rau xoom, uas ntawm TCO tiag tiag qis dua." Kev txhais lus txhais lus ua lus nyiaj txiag yog qhov kev teeb tsa tau txais kev pom zoo li cas. Qhov no yog vim li cas peb hais kom suav cov nyiaj rov qab hauv txhua qhov haujlwm - nws yog ob qho tib si engineering logic thiab lus lag luam.

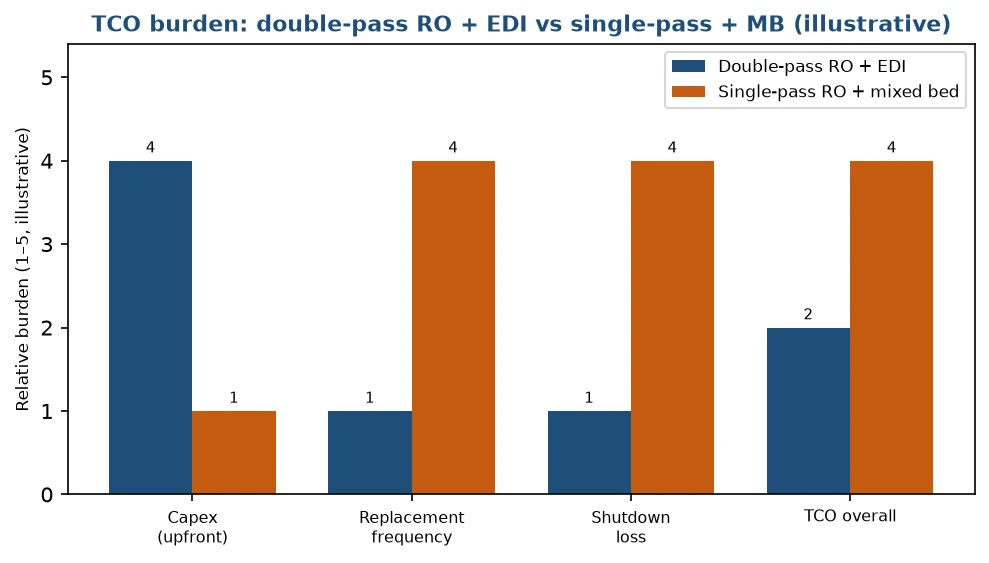

Daim duab:TCO lub nra (pib 1-5): ob npaug- dhau RO + EDI vs ib zaug dhau RO + txaj txaj

4. Hom kev ua tsis tiav thiab kev zam

4.1 CO₂ Spikes thiab siab -pH Scaling

Ob qho kev sib tsoo: ib qho, alkalinity spikes lossis degassing tsis ua haujlwm, dej nyab CO₂ rau hauv EDI; ob, interstage pH nqa overshoots, los yog thawj zaug -pass pretreatment tsis tau tshem tawm hardness, yog li qhov thib ob pass scales ntawm high pH. Tus qub ua phem rau EDI, qhov kawg ua rau qhov thib ob dhau nws tus kheej. Txoj kev kho yog interstage pH thiab degassing interlocks nrog lub tswb, ntxiv rau thawj zaug -pass pretreatment uas tshem tawm hardness ua ntej. Nco ob kab thiab kev ruaj ntseg so.

4.2 Interstage Cua-Xauv thiab EDI pub tawm ntawm Spec

Cua nkag mus rau hauv lub tank interstage los yog piping ua rau thib ob -dhau ntws fluctuation txawm huab cua- xauv; ib qho kev tshwm sim thawb thib ob- dhau permeate dhau los ntawm lub qhov rais kam rau ua (conductivity drift, membrane aging), tsis muaj qhov pib-kev hloov pauv valve, ntws ncaj qha rau hauv EDI. Ob leeg raug tiv thaiv los ntawm "cov cuab yeej + kev cuam tshuam + kev ntsuas lub sijhawm," tsis yog los ntawm tib neeg saib. Kev paub qhia: txhua qhov kev tiv thaiv nyob ntawm tus neeg saib yuav ua tiav qhov kev hloov pauv thaum tsis muaj leej twg saib.

5. Kev lees txais thiab Kev Xa Khoom

5.1 Yuav Ua Li Cas Txais Qhov Thib Ob -Pass RO + EDI

Tsis txhob txais ntawm "qhov hluav taws xob tiv thaiv hauv spec" ntawm ib qho tam sim. Khiav tsis tu ncua ntev txaus, sau thib ob-dhau permeate conductivity, EDI nyob rau hauv / tawm resistivity, txhua theem qhov sib txawv siab thiab rov qab, thiab paub meej tias lawv nyob ruaj khov nyob rau hauv lub qhov rais nyob rau hauv lub fluctuating luag hauj lwm. Kuj txheeb xyuas qhov kev sib cuam tshuam: cov khoom siv hluav taws xob ntau dua thiab saib seb puas yog qhov hloov pauv valve tiag tiag hloov dej tawm ntawm EDI. Kev lees txais yog qhov kawg ntawm lub cev ua ntej xa khoom; qhov ua tiav qhov kev xeem ntau dua, qhov kev kub ntxhov tsawg dua tom qab.

5.2 Yam twg O&M Indicators to Watch

Txhua hnub, peb yam txaus: thib ob- dhau permeate conductivity (EDI pub rooj vag), txhua theem qhov sib txawv siab (scaling / fouling precursor), thiab rov qab los nrog concentrated rov qab (txawm tias dej tshuav). Daim ntawv qhia cov no raws li cov qauv thiab cov kab ke feem ntau pom cov tsos mob ntawm cov nkhaus no ua ntej ua tsis tiav - ntes nws ib lub lis piam ua ntej txhais tau tias muaj tsawg dua kaw. O&M cov ntsiab lus yog hloov kev tua hluav taws nrog cov qauv.

5.3 Spare-Txoj Kev Zoo thiab Kev Hloov Kev Paub

Tom qab tau txais, ob yam txiav txim siab qhov system peb xyoos tom ntej. Ib qho, khoom seem- cov tswv yim zoo: thib ob- kis cov khoom siv membrane, kev noj tshuaj - cov twj tso kua mis diaphragms, cov khoom siv hluav taws xob - cov khoom siv no xav tau yam tsawg kawg nkaus kev nyab xeeb Tshuag thiab cov voj voog hloov ntshiab, tsis yog kev xa khoom kub ceev tom qab ua tsis tiav. Qhov thib ob, kev paub txog kev hloov pauv: kev cob qhia thiab cov ntaub ntawv "vim li cas teeb tsa txoj kev no, uas peb tus lej saib txhua hnub, cov tsos mob twg txhais tau tias kuaj xyuas theem twg" rau hauv tus neeg siv O&M txhais tes. Txawm hais tias lub kaw lus zoo npaum li cas, hauv txhais tes tsis muaj kev cob qhia nws rhuav tshem - qhov kev paub zoo npaum li cas cais "muag khoom" los ntawm "ua engineering."

6. Nyuaj Indicators rau kev soj ntsuam cov neeg muab khoom

Yuav ua li cas los sib piv cov chaw muag khoom rau Ob Chav Pass RO System Rau EDI Pretreatment? Tsis txhob saib tag nrho cov nqe lus. Ua ntej, "dej-mapping peev" - lawv puas tau thov rau koj cov ntaub ntawv raw- dej ua ntej teeb tsa, lossis tsuas yog pov tus qauv qauv? Qhov thib ob, "skid tiav" - lawv puas ua ntej- sib dhos ob qho tib si hla, ntu ntu, EDI, thiab kev tswj hwm hauv lub Hoobkas, lossis ua ke ntawm qhov chaw? Thib peb, "interlock thiab tswb daim ntawv teev npe" - yog conductivity auto-diversion, pH limiting, thiab huab cua-lock tiv thaiv sau rau hauv kev tswj logic? Plaub, "kev npaj txais" - lawv puas tuaj yeem ua haujlwm ntev txaus thiab txheeb xyuas qhov ua siab ntev -qhov rais ruaj khov nyob rau hauv lub luag haujlwm hloov pauv? Cov plaub no tseem ceeb dua rau seb koj lub cev kav ntev li kaum xyoo lossis peb dua li tus nqi.

7. Kaw: Dej Ntsuas Ua Ntej → Dej Qib Tom ntej → Them Rov Qab Kawg

Restating the methodology, vim nws yog lub hauv paus ntawm txhua qhov kev xaiv:ua qhov dej tshuav ua ntej- dej nyoos npaum li cas, nws hloov pauv li cas, qhov twg concentrate mus;ces muab qib dej zoo- tau qhab nia dej nyoos tawm tsam EDI lub qhov rais kam rau txiav txim siab seb qhov thib ob dhau los thiab kev sib tshuam yuav tsum tawm tsam CO₂, silica, lossis boron;Thaum kawg suav lub sijhawm them rov qab- ntsuas qhov thib ob lub peev, lub zog, thiab kev noj tshuaj tiv thaiv EDI lub neej, kev poob qis, ua raws, thiab tawm los tiv thaiv, kom tau TCO. Taihe Environmental Protection, hauv kev xaiv, skidding, thiab kev ua haujlwm ob npaug - dhau rov qab osmosis nrog EDI pretreatment, ib txwm ua raws li "dej sib npaug - dej grading - payback" kab coj cov neeg siv khoom UPW systems los ntawm "tuaj yeem tsim dej" mus rau "tsis muaj xwm txheej loj hauv kaum xyoo" - thiab qhov zooMuab ob npaug rau RO System Rau EDI Pretreatmentyog qhov txuas tseem ceeb ntawm kab ntawd.
