Ceramic Membranes Rau Seawater Lim: Vim li cas Seawater Pretreatment Hloov Los Ntawm Polymeric rau Ceramic Membranes

Yog tias koj nco qab ib kab lus ntawm kab lus no, cia nws ua qhov no:qhov nyuaj ntawm kev lim dej hiav txwv tsis yog "kho cov ntsev tawm" tab sis "ua kom cov dej ntws qis qis kom ciaj sia thiab ruaj khov."Qhov ntawd yog qhov teeb meem tiag tiagceramic membranes rau seawater pomyog txhais los daws. Ntau qhov dej num cuam tshuam tag nrho lawv cov kev mloog mus rau qhov thim rov qab osmosis (RO) thiab saib xyuas qhov kev kho ua ntej ntawm nws-ces saib RO daim nyias nyias ua txhaum dua, ntxuav ntau dhau, thiab poob kev pabcuam lub neej. Tsab ntawv xov xwm no tsom mus ua kom tiav ib qho kev hloov hauv lub siab: nyob rau hauv ib tug hostile pub zoo li seawater, ceramics tsis yog "polymeric membrane kim dua" tab sis ib chav kawm sib txawv.

1. "Peb Lub Siab Thiab Ib Leeg Hloov": Vim Li Cas Dej Hiav Txwv yog ib qho nyuaj tshaj plaws

Txhawm rau kom nkag siab tias yog vim li cas cov khoom siv ceramics tau rov xav dua, peb yuav tsum xub nkag siab txog dej hiav txwv nws tus kheej. Nws tsis zoo li cov dej hauv dej, dej zoo, lossis txawm tias cov dej khib nyiab hauv nroog: cov dej hiav txwv sib xyaw ua ke ntau yam uas ua rau lub neej luv ntawm cov ntaub ntawv pom.

1.1 High Salinity thiab Corrosion: Thawj qhov pib rau txhua yam khoom

Seawater yog ib puag ncig ntuj, muaj zog electrolytic ib puag ncig. Nws cov ntsiab lus siab ntawm chloride, bromide, thiab sulfate, ua ke nrog cov mob aerobic, ua rau qeeb - ua haujlwm corrosion ntawm cov khoom siv polymer feem ntau. Tom qab lub sijhawm ntev immersion thiab rov ua tshuaj ntxuav, polymeric daim nyias nyias tuaj yeem plasticize, embrittle, thiab poob flux irreversibly. Qhov no tsis yog qhov teeb meem ntawm kev ua haujlwm tsis tu ncua tab sis yog qhov tsis sib haum xeeb ntawm cov khoom siv thiab ib puag ncig. Cov pob txha inorganic ntawm ib daim nyias nyias (sib tham hauv qab no) yog qhov muaj txiaj ntsig zoo ntawm qhov pib no - nws yog qhov tseem ceeb tiv thaiv cov ntsev, acids, bases, thiab oxidants.

1.2 High Turbidity thiab High Biological Activity: Lub ntsiab qhov chaw ntawm Fouling

Cov dej hiav txwv nqa cov khib nyiab siab, colloids, algae, thiab kab mob, thiab cov no fluctuate sharply nrog lub caij thiab huab cua. Tom qab cua daj cua dub, turbidity spikes; Thaum lub sij hawm algal Bloom, organic thiab nplaum teeb meem surges. Qhov teeb meem loj dua yogbiofouling: Marine microorganisms nyob rau ntawm daim nyias nyias thiab tom qab ntawd tsim biofilms, tom qab ntawd kev ntxuav yuav nyuaj thiab kim dua. Polymeric nto yog cov hydrophobic thiab tsis muaj zog, uas ua rau lawv yooj yim tuav rau cov organic foulants.

Daim duab: Kev piav qhia ntawm "peb qhov siab thiab ib qho kev hloov pauv" uas dej hiav txwv cuam tshuam rau cov ntaub ntawv pom: siab salinity, siab turbidity / colloids, siab lom lom,

thiab cov dej tsis tu ncua-kev poob siab zoo uas tau tsav los ntawm huab cua thiab algal blooms (piv txwv li; hloov tau nrog kev ua haujlwm tiag tiag).

1.3 Transient Shocks: Qhov Kev Ntsuam Xyuas Toughest ntawm System Resilience

Cov dej hauv dej yuav tsis zoo, tab sis feem ntau nws hloov maj mam. Cov dej hiav txwv tuaj yeem tig mus rau hauv cov xuab moos vim muaj roj slick, algal tawg, lossis cua daj cua dub ntws. Lub kaw lus uas "khiav tau zoo tsuas yog hauv cov dej zoo xwb" yuav kaw lossis ua rau lub sijhawm hloov pauv hloov pauv - thiab qhov ntawd tsis yog qhov ua tau zoo. Ceramic membranes, ua tau zoo thiab aggressively cleanable, yog zoo haum rau withstanding xws shocks.

1.4 Scaling and Salt Precipitation: The Underrated Mob Hlwb

Dhau li ntawm qhov "dub paug," dej hiav txwv kuj "crystallizes." Thaum cov concentration hauv zos, qhov kub thiab txias, lossis pH hloov, calcium thiab magnesium ntsev zoo li los nag rau ntawm daim nyias nyias thiab tsim cov nplai nyuaj. Tsis zoo li cov khib nyiab tshem tawm, qhov ntsuas no tsis yooj yim yaug tawm; nws maj mam thickens, nqaim channels, thiab nce kev khiav hauj lwm siab sib txawv. Qhov phem tshaj, qhov salinity siab ntawm cov dej hiav txwv tawm ntawm qhov nqaim ntawm qhov ntsuas thiab tsis yog - kev ntsuas ntsuas, yog li tus qauv tsim me ntsis tuaj yeem nkag mus rau hauv nws. Qhov no yog vim li cas acid tu (rau inorganic scale) thiab alkaline / oxidative tu (rau organics thiab biofilm) muaj teeb meem sib npaug- thiab ceramics tuaj yeem tuav ob " txhuam hniav."

2. Qhov tsis muaj zog ntawm Polymeric Membranes hauv Seawater

Qhov no tsis yog hais tias cov ntaub ntawv polymeric siv tsis tau - qhov tseeb lawv tseem yog cov khoom siv tseem ceeb. Tab sis nyob rau hauv dej hiav txwv pretreatment tshwj xeeb, ob peb ntawm lawv cov chaw tsis muaj zog yog magnified.

2.1 Qhov txwv ntawm kev ntxuav tshuaj

Polymeric daim nyias nyias tsis nyiam cov oxidants muaj zog xws li sodium hypochlorite (ib hom oxidant siv los ntxuav) thiab tsis nyiam huab cua pH. Tsis tau seawater pretreatment feem ntau xav tau cov "cov tshuaj muaj zog" los tawm tsam biofouling thiab organics. Qhov tshwm sim yog qhov teeb meem: ntxuav maj mam thiab fouling yeej; huv si aggressively thiab membrane lub neej suffers. Ceramic daim nyias nyias tuaj yeem raug ntxuav ntau zaus hla ntau qhov pH thiab hauv cov txheej txheem oxidizing, tig "tu"- feem ntau ua haujlwm hauv kev ua haujlwm - los ntawm lub nra rau hauv cov cuab yeej niaj hnub.

2.2 Biofouling thiab Nws Knock-Rau Cov Kev Pabcuam Lub Neej

Thaum biofouling tsim ib zaj duab xis rau ntawm daim nyias nyias, nws feem ntau yog nrog los ntawm kev puas tsuaj irreversible, thiab kev ntxuav tuaj yeem rov qab tsuas yog qhov kev ua tau zoo xwb. Yog li ntawd, cov khoom siv polymeric hauv dej hiav txwv zoo li hloov tau ntau dua li lawv nyob hauv cov kev pabcuam dej khib nyiab hauv nroog. Kev hloov pauv tsis tu ncua txhais tau hais tias lub sijhawm poob qis, khoom seem, thiab kev ua haujlwm - cov nqi zais uas tus nqi qis dua yuav zais.

2.3 Lub Ceiling ntawm Flux Recovery

Ib qho kev qhia tseem ceeb ntawm seb puas yog daim nyias nyias "kawg" hauv dej hiav txwvrov qab flux-Ntau npaum li cas ntawm nws thawj flux nws regains tom qab ntxuav. Tom qab biofouling thiab organic adsorption, ib feem ntawm fouling ntawm lub polymeric membrane yuav "irreversible"; Txawm tias nyuaj npaum li cas koj ntxuav, nws yeej tsis rov qab mus rau thawj tus nqi, thiab flux nqis nqis, theem los ntawm theem. Vim tias cov ntaub nplaum ceramic yog hydrophilic, nruj, thiab ruaj khov, feem ntau ntawm lawv cov fouling yog thim rov qab, lawv lub qab nthab rov qab siab dua, thiab lawv qhov ntev - lub sij hawm nkhaus yog flatter. Qhov no tsis yog mysticism; nws yog qhov sib xyaw ua ke ntawm cov khoom siv xwm txheej dhau sijhawm ua haujlwm ntev.

3. Vim li cas Ceramic Membranes tuav lawv hauv av: Pib los ntawm Cov Khoom Siv Zoo

Ceramic membrane tsis yog "yas coated nrog ceramic"; nws yog ib lub cev ntxeem tau sintered nkaus los ntawm cov ntaub ntawv inorganic. Ib qho kev sib txawv ntawd txiav txim siab txhua yam tom qab.

3.1 Cov "Hard Bones" ntawm Inorganic Cov Khoom: Alumina, Zirconia, Silicon Carbide

Cov txheej txheem ceramic feem ntau yog ua los ntawm alumina (Al₂O₃), nrog kev sib cais txheej ntawm zirconia (ZrO₂) lossis titanium{0}} cov ntaub ntawv doped. Cov ntawv thov siab- kawg yuav siv silicon carbide (SiC), uas nyuaj dua, hnav ntau dua- tiv taus, thiab thermally conductive ntau dua. Cov ntaub ntawv no tsis yaj hauv brine, tsis txhob ntshai cov kua qaub lossis cov hauv paus, thiab tsis ntshai oxidants; structurally, lawv yog txhav porous lub cev nrog ib tug nqaim, uniform pore - loj tis. Rau cov dej hiav txwv, qhov "cov ntaub ntawv DNA" no yog lub hauv paus ntawm kev tiv thaiv corrosion, fouling tsis kam, thiab kev pab lub neej ntev.

3.2 Hydrophilic Surfaces thiab Irreversible Fouling

Ceramic membrane nto yog ib txwm hydrophilic. Hydrophilicity txhais tau tias roj thiab hydrophobic organics tsis yooj yim "stick"; nws txhais tau hais tias biofilms tsim qeeb dua thiab, txawm tias thaum lawv ua, tau yooj yim dua los ntawm kev rov qab ntxuav thiab ntxuav. Hloov "irreversible fouling" mus rau "reversible fouling" ntau npaum li qhov ua tau yog ib qho ntawm cov ntsiab lus tseem ceeb tshaj plaws ntawm cov khoom siv ceramic hauv dej hiav txwv.

3.3 Tshaj Tawm Pretreatment: Txoj Kev Sib Txuas rau Ceramic Membranes

Tshaj li lawv lub luag haujlwm tseem ceeb hauv kev kho mob ua ntej, ceramics tau txuas mus rau ob qho kev qhia. Thawj yogmembrane distillation, uas siv hydrophobically hloov tej daim nyias nyias kom ib tug kub sib txawv tsav dej vapor hla thaum ntsev thiab foulants raug tsis lees paub-zoo haum rau ntxiv concentrating siab- salinity brine. Qhov thib ob yogcoupling nrog oxidation txheej txheem: Vim tias ceramics zam oxidants, lawv tuaj yeem ua haujlwm nrog cov oxidation siab heev thiab cov kev kho zoo sib xws uas ua rau cov organic recalcitrant ua ntej lawv cuam tshuam. Cov kev no yuav tsis yog qhov yuav tsum tau ua rau txhua qhov dej hiav txwv dej hiav txwv, tab sis lawv qhia tau tias cov khoom zoo ntawm cov khoom siv ceramic yog qhib rau qhov chaw dav dua "pretreatment."

3.4 Ib lub rooj kom pom qhov txawv

Cov lus hauv qab no flattens txhua qhov loj me rau hauv "kev ntsuam xyuas zoo," yam tsis muaj cov lej sib sau ua ke- uas yog qhov tseeb qhov kev xaiv engineering yuav tsum saib.

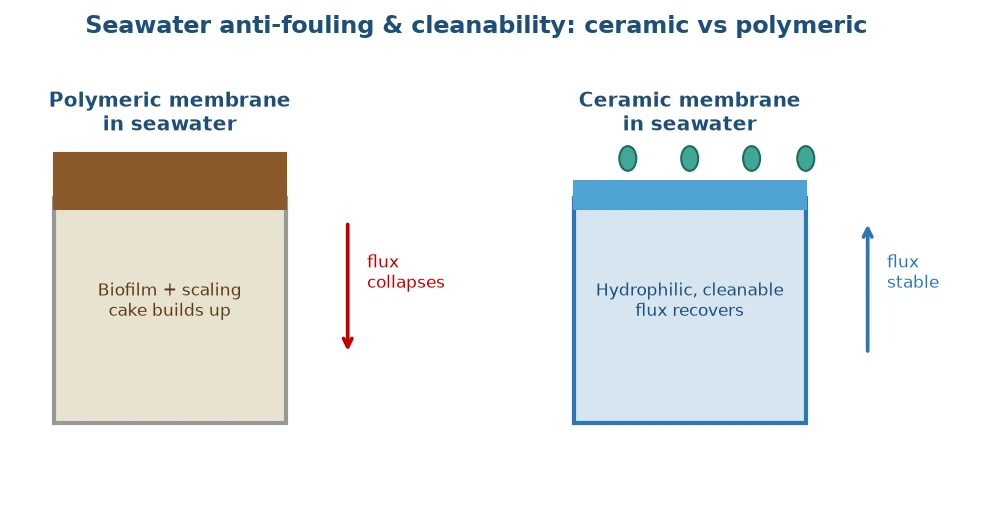

Daim duab: Kev sib piv zoo ntawm ceramic piv rau polymeric membranes thoob plaws qhov ntev ntawm cov dej hiav txwv

(High/zoo/Medium/Low; txheeb ze piv txwv, tsis yog ntsuas qhov tseem ceeb).

4. Kev hloov pauv hauv kev xav: Ntau tshaj li qhov Pricier Polymeric Membrane

Ntau tus neeg yuav khoom instinctively frown ntawm thawj ceramic membrane hais lus - tus nqi pem hauv ntej yog qhov tseeb dua. Tab sis muaj ib qho kev paub tsis meej ntawm no uas pheej rov ua pov thawj:kho "cov nyiaj siv rau daim nyias nyias" raws li "tus nqi ntawm kev siv daim nyias nyias."Hauv qhov hnyav, cov khoom noj tsis tu ncua zoo li dej hiav txwv, dab tsi tiag tiag noj cov peev nyiaj yog lub sijhawm poob qis, nquag hloov daim nyias nyias, thiab khob - ntawm kev poob thaum RO raug rub. Ceramic membranes pauv tus nqi nce siab dua rau lub sijhawm poob qis dua thiab lub sijhawm hloov pauv ntev dua - thiab ntawm tag nrho cov ntawv sau nyiaj, uas feem ntau yog qhov zoo dua.

Qhov tseem ceeb tshaj, nws yog "cov cuab yeej cuab tam muaj zog": thaum dej hiav txwv hloov tus cwj pwm, nws tseem khiav thiab tuaj yeem ua kom huv si rov qab mus rau kev noj qab haus huv, tsis yog kev sib tsoo ntawm thawj algal tawg. Rau ib txoj haujlwm uas nyob ntawm cov dej ruaj khov-ib koog pov txwv, cov nroj tsuag ntug dej hiav txwv, lub nkoj - qhov kev tawm tsam yog nyiaj txiag.

5. Peb qhov kev xav tsis zoo

Nyob rau hauv engineering voj voog, peb misconceptions txogceramic membranes rau seawater pomrov muaj dua thiab tsim nyog tau kev qhia meej.

Misconception 1: "Ib daim nyias nyias nyias tsuas yog kim dua, zoo dua polymeric membrane."Tsis yog. Lawv yog ob yam sib txawv -lub cev tsis muaj zog, lub cev tsis sib xws piv rau cov organic polymer. Nws tsis yog "kev txhim kho polymeric membrane" tab sis "lwm cov ntaub ntawv txoj kev." Tsuas yog los ntawm kev nkag siab qhov no koj yuav tsum tsis txhob xaiv cov khoom siv ceramic nrog lub siab xav siv rau cov khoom siv polymeric.

Misconception 2: "Nruab ib daim kab xev ceramic thiab koj tau teeb tsa -kev tu- dawb."Kuj tsis muaj. Nws muaj zog, tab sis qhov ntawd tsis txhais hais tias nws yuav tsum tsis muaj kev saib xyuas. Backwashing, huab cua scouring, CIP, thiab xaiv inline coagulation tag nrho tseem siv tau; nws tsuas ua rau "hnyav" txij nkawm yam tsis muaj kev puas tsuaj. Kev kho "robust" raws li "kev saib xyuas-dawb" caw cov teeb meem fouling los ntawm kev tswj tsis tau.

Misconception 3: "Ib lub ceramic membrane tuaj yeem hloov rov qab osmosis thiab desalinate ncaj qha."Rau seawater desalination, ceramic membrane ntawm micro-/ultrafiltration (MF/UF) qib feem ntau yog ua pretreatment, ntxuav cov dej rau RO kom desalinate; nws tsis nws tus kheej tshem tawm ntsev ions. Tsuas yog los ntawm qhov muab tso rau hauv lub luag haujlwm zoo tuaj yeem tsim tag nrho lub tsheb ciav hlau kom raug.

6. Tsis yog Nyiaj Txhaum Cai: Ib thaj tsam thiab cov nqi

Txhua yam cuab yeej muaj ciam teb, thiab hais lawv ncaj ncees yog kev ntxias ntau dua.

Kev nqis peev ntau dua: ntawm cov khoom siv tus nqi yuav khoom ib leeg, cov khoom siv ceramics raug nqi ntau dua li cov polymeric -qhov no yog lawv qhov loj tshaj "deterrent."

Kev txwv rau cov colloids zoo heev thiab yaj kuab paug: micro-/ultrafiltration (MF/UF)- qib ceramics cuam tshuam cov khoom, colloids, thiab cov kab mob, tab sis lawv tsis tuaj yeem lis cov ntsev yaj lossis qee qhov me me - cov organic molecule- uas yog txoj haujlwm ntawm RO lossis lwm yam txheej txheem. Cia siab tias nws yuav "ua txhua yam hauv ib kauj ruam" yuav ua rau poob siab.

Installation thiab kev khiav hauj lwm xav tau: ceramic membrane yog lub cev nruj; kev txhim kho, kav dej, thiab kev tswj lub siab yuav tsum tau ua kom zoo, vim tias kev tuav nruj yuav ua rau tawg. Hmoov zoo, nyob rau hauv kev ua haujlwm kom raug nws yog tawv heev.

Tsis yog txhua qhov dej hiav txwv dej ua pov thawj rau nws: qhov twg cov dej zoo kuj yog me me thiab downtime yog pheej yig, ib tug polymeric membrane tej zaum yuav yog ib tug ntau economic teb. Kev xaiv nyob ntawm qhov xwm txheej, tsis yog nyob rau ntawm qhov kev siv tshuab zoo tshaj plaws.

Muab cov ciam teb no tso rau ntawm lub rooj yog qhov tseeb li cas peb paub tseeb tias cov khoom siv ceramics siv qhov twg lawv yuav tsum yog.

7. Rov qab mus rau Peb Txoj Kev

Tom qab tag nrho cov kev xav no, kev ua tiav tseem nqis los rau qhov kev paub zoo:ua ntej ua qhov sib npaug dej, tom qab ntawd faib cov dej zoo, thiab thaum kawg suav lub sijhawm them rov qab.

Dej sib npaug: ua ntej qhia meej txog kev noj haus, qhov ntim dej hiav txwv muaj, thiab qhov ntau ntawm cov dej -kev hloov pauv tau zoo- qhov no txiav txim siab qhov ntsuas qhov ntsuas thiab ntu ntu -resilience tsim.

Dej- kev faib tawm zoo: txhais tau tias nyob deb npaum li cas cov dej hiav txwv yuav tsum tau kho los tiv thaiv cov dej ntws hauv qab RO (mus rau qib twg tshem tawm cov khib nyiab, colloids, thiab biomass yuav tsum tau txo). Tsis yog nyob rau hauv -tsim lossis dhau -tsim.

Kev xam nyiaj rov qab: siv tag nrho cov nqi ntawm cov tswv cuab es tsis yog tus nqi them ua ntej ib leeg, ua rau lub sijhawm poob qis, hloov daim nyias nyias, thiab cov tshuaj ntxuav.

Hauv kev kho dej hiav txwv, Taihe Ib puag ncig Kev Tiv Thaiv tau ua haujlwm ntev ntev hauv dej- cov xwm txheej zoo nrog cov salinity siab, siab turbidity, thiab siab ua haujlwm lom neeg. Nws cov ntaub ntawv ceramic rau seawater pom yog tsim nyob ib ncig ntawm lub tswv yim ntawm "cov ntaub ntawv muaj zog + sib sib zog nqus cleanability + modularity," pab cov neeg siv tau cov lej ncaj qha hla peb kauj ruam ntawm dej sib npaug, dej- kev faib tawm zoo, thiab kev them rov qab. Tus yuam sij rau taming no seawater "beast" feem ntau yog tsis nyob rau hauv lub kawg RO theem, tab sis nyob rau hauv no underrated ceramic membrane pretreatment.
