Ceramic Membranes Rau Seawater Lim: Lawv Qhov Chaw Thiab Kev Ua Haujlwm hauv Lub Tsheb ciav hlau Desalination

Tsab ntawv dhau los piav qhia "vim li cas ceramics membranes." Qhov no piav qhia "qhov twg lawv zaum thiab lawv khiav li cas." Ntau qhov kev xaiv yuam kev tshwm sim tsis yog vim qhov tsis ncaj ncees lawm membrane raug xaiv, tab sis vim tsis muaj leej twg xav kom meej txog lub luag haujlwm ntawdceramic membranes rau seawater pomyeej ua si hauv tag nrho lub tsheb ciav hlau - lawv puas yog tus thawj coj lossis tus txhawb nqa? Cov lus teb yog tias lawv ua tus tseem ceeb tshaj plaws "tus neeg ncaws pob" ua ntej ntawm RO es tsis ua qhov kev tawm tsam nws tus kheej.

1. Tag nrho lub tsheb ciav hlau zoo li cas

Tig dej hiav txwv rau hauv dej los yog lwm yam siv tau dej tshiab yog ib qho kev sib txuas, tsis yog ib kauj ruam.

1.1 Tag Nrho Cov saw los ntawm kev nkag mus rau cov khoom siv dej

Ib tug raug seawater desalination lub ntsiab kab khiav roughly: seawater intake → coarse pom (cuav ntses, cws, seaweed, thiab loj hais) → coagulation / sedimentation (flocculating nplua colloids thiab organics) →ceramic membrane filtration (qhov tseem ceeb pretreatment)→ kev ruaj ntseg pom (kev tiv thaiv zaum kawg) → SWRO (seawater reverse osmosis, qhov tseeb desalting) → post-kev kho mob (remineralization, tshuaj tua kab mob, khaws cia thiab kev faib tawm). Ceramic membrane zaum hauv nruab nrab-tom qab noj, ua ntej desalting-raws li qhov tseem ceeb txuas txuas ob.

1.2 Vim li cas Ceramic Membrane zaum Upstream ntawm RO

RO daim nyias nyias yog muag heev. Lawv ntshai tshem tawm cov khib nyiab uas khawb lawv, colloids uas ua rau lawv, thiab biofouling uas xa cov siab sib txawv nce siab. Los ntawm kev ua "kev qias neeg, kev ua haujlwm hnyav" nrog cov khoom siv ceramic ua ntej RO, RO tuaj yeem desalinate ruaj khov thiab ruaj khov. Nyob rau hauv lwm yam lus, tus nqi ntawm ib tug ceramic membrane tsis yog hais tias nws desalinates, tab sis hais tias nws cia RO desalinate ntseeg tau thiab ntev. Muab tso rau hauv qhov tsis ncaj ncees lawm (tom qab RO, lossis tshem tawm nws) feem ntau raug nqi koj nquag tu thiab ua tsis tiav RO ntxov ntxov.

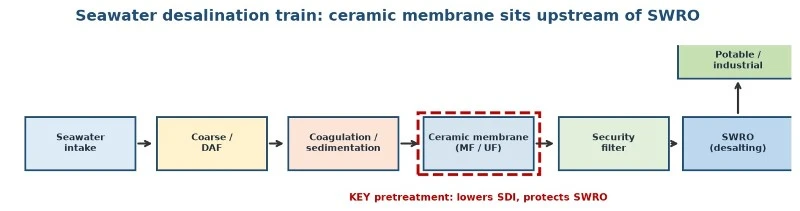

Duab: Ib tug raug seawater desalination tsheb ciav hlau: lub ceramic membrane zaum saum RO, noj lub hauv paus pretreatment lub luag hauj lwm ntawm txo SDI thiab tiv thaiv RO (piav qhia; hloov tau nrog ib tug tiag tiag txheej txheem P&ID).

1.3 Vim li cas Tsis "Xa Dej Hiav Txwv ncaj nraim rau RO"

Cov neeg feem ntau nug: txij li RO tuaj yeem desalinate, vim li cas ho tsis xa dej hiav txwv ncaj nraim rau RO thiab hla kev ua ntej? Cov lus teb yog tias RO daim nyias nyias dhau "nco" txog lawv cov khoom noj. Tshem tawm cov khib nyiab, colloids, thiab algae hauv dej hiav txwv sai sai ua cov txheej txheem fouling ntawm RO nto, xa qhov sib txawv siab, tu ntau zaus, thiab kev pab cuam lub neej poob. Pretreatment tsis yog ib qho kev xaiv zoo; nws yog qhov precondition rau RO ua hauj lwm nyob rau lub sij hawm ntev. Raws li pretreatment, lub ceramic membrane yuav siv sij hawm nyob rau hauv lub qias neeg ua hauj lwm kom RO tuaj yeem tsom rau qhov nws ua tau zoo tshaj plaws: desalting.

2. Nws Li Cas Tiag Tiag: Txo SDI, Tiv Thaiv RO

Yuav kom nkag siab txog tus nqi ntawm cov khoom siv ceramic, koj yuav tsum xub nkag siab txog qhov ntsuas uas tuaj yeem tshwm sim dua:SDI (Silt Density Index).

2.1 SDI yog dab tsi thiab yog vim li cas RO ntshai nws

SDI ntsuas sai npaum li cas cov colloids thiab cov khoom raug tshem tawm hauv dej yuav txhaws lub lim membrane. RO pub muaj qhov xav tau meej rau SDI- tus nqi siab dua, qhov ua txhaum RO sai dua, ntau zaus nws yuav tsum tau ntxuav, thiab nws lub neej luv dua. Seawater yog ib txwm siab hauv SDI thiab hloov pauv nrog huab cua, yog li "cob SDI nqis" yog thawj qhov tseem ceeb ntawm seawater pretreatment. Nrog nws cov qauv micro-/ultrafiltration- qib qhov pores thiab kev tsis lees paub ruaj khov, cov khoom siv ceramic tuaj yeem tuav RO pub rau hauv ntau yam RO nyiam.

2.2 Lub Siab Ceramic Membrane Tshem Tawm rau RO

Tshaj li SDI, cov khoom siv hluav taws xob kuj tseem txiav cov turbidity, algae, cov kab mob, thiab ib feem ntawm cov organics -txhais tau qhov "differential- cov tshuab hluav taws xob siab" RO ntshai tshaj plaws. Tuav cov nraub qaum no ua kom ntev RO tu lub sijhawm, ua kom ruaj khov siab sib txawv, thiab ua kom rov qab tswj tau ntau dua. Los ntawm cov nroj tsuag qhov kev xav, txhua qhov me me ntawm cov ceramic membrane ua yog me ntsis RO tsis tas yuav nqa.

2.3 Microfiltration lossis Ultrafiltration: Yuav Ua Li Cas Ob Qhov Kev Ua Haujlwm

Ceramic membranes feem ntau piav raws li microfiltration (MF) lossis ultrafiltration (UF) qib. Ob qho no tsis yog hloov pauv rau ib leeg tab sis kev faib ua haujlwm, thiab xaiv cov qib tsis raug ncaj qha cuam tshuam rau flux thiab RO tiv thaiv.

Txoj cai ntawm tus ntiv tes xoo:ua hauj lwm rov qab los ntawm qhov zoo yuav tsum tau tiv thaiv RO es tsis xav tias finer yog zoo dua.ntxhib dhau thiab RO tseem raug kev txom nyem; zoo heev thiab koj nkim flux thaum nce fouling siab. Qhov kev txawj ntse tiag tiag nyob ntawm qhov sib npaug ntawm "tsuas yog txaus kom ua tau raws li qhov yuav tsum tau ua hauv qab."

3. Kev Ua Haujlwm Trio: Hla-Flow, Backwash, CIP

Ceramic membrane tsis yog cov cuab yeej uas koj "nruab thiab tsis nco qab," tab sis lub kaw lus nrog lub suab nrov. To taub peb, thiab koj nkag siab tias vim li cas nws thiaj li muaj zog.

3.1 Hla-Flow Filtration: Tsis txhob cia Foulants "Sit" ntawm lub Membrane

Tsis zoo li tuag- kawg pom (dej thawb perpendicularly los ntawm daim nyias nyias, fouling piling rau saum npoo), ceramics feem ntau sivhla - ntws: seawater sweeps tangentially raws daim nyias nyias, feem ntau ntawm nws tawm raws li mloog zoo, thiab tsuas yog ib feem dhau los ntawm permeate. Lub tangential ntws ua zoo li nruam scouring, ua kom foulants tsis nyob rau hauv ib lub ncuav mog qab zib ruaj khov. Nov yog thawj kab ntawm kev tiv thaiv - fouling tiv thaiv.

3.2 Backwashing and Air Scouring: Daily Flux Recovery

Txawm tias muaj tus ntoo khaub lig- ntws, qhov chaw maj mam khaws cov khoom. Li norov qab ntxuavthiabhuab cua scouring: ib ntus yaug nyob rau hauv thim rov qab nrog permeate thiab agitating saum npoo nrog huab cua kom co tawm xoob foulants. Cov kev ua "lub teeb yuag" no nquag thiab luv luv, ua haujlwm txhua hnub uas ua kom muaj zog txaus.

3.3 CIP: Periodic Deep Cleaning

Thaum rov qab ntxuav tsis txaus,CIP (huv-hauv- qhov chaw)los hauv: acid rau nplai, alkaline ntxiv rau oxidant rau cov organic thiab biofilm. Ceramic membranes tiv taus cov kua qaub, cov hauv paus, thiab oxidants, yog li CIP tuaj yeem "ntaus nyuaj" thiab strip tawv fouling uas rov qab tsis tuaj yeem. Qhov no yog raws nraim txoj kev ywj pheej polymeric membranes tsis muaj.

3.4 Cov qauv huv huv: Kho hom Fouling

Kev ntxuav tsis yog "kho ib lub thoob ntawm cov tshuaj thiab yaug"- nws yog hom phiaj kho. Inorganic nplai (calcium thiab magnesium ntsev) yields rau acid; organic thiab biofilm tawm los rau alkali thiab oxidant; tej zaum alkaline-ces - acid los yog staged tu yog xav tau. Qhov kom zoo dua ntawm daim nyias nyias yog tias nws zam cov "cov tshuaj muaj zog" thoob plaws pH ntau thiab muaj zog oxidizing, tsis muaj kev ntshai tias kev ntxuav nws tus kheej yuav ua rau nws puas. Tsim ib lub tsev qiv ntawv formulation los ntawm fouling hom thiab sau cov xwm txheej tshwm sim rau hauv kev tswj cov logic, thiab ntxuav hloov los ntawm "kev paub" mus rau "txoj kev."

4. Module Form thiab System Integration

Yuav ua li cas ib tug ceramic membrane "zoo li" ncaj qha txiav txim seb lub kaw lus tsim thiab tswj.

Tubular / multi-channel: feem ntau hom. Ib lub ntsiab lus muaj ntau cov channel; dej hiav txwv hla- ntws hauv lawv thiab hla cov phab ntsa membrane. Sturdy, siab -siab resistant, haum rau siab -turbidity, siab -cov dej hiav txwv, thiab yooj yim los ntxuav. Kev lag luam tawm -tawm yog qhov tsawg dua ntim ntim ib chav tsev ntim.

Pav ca - ntawv: daim nyias nyias yog ua rau hauv daim hlau tiaj tus-compact, nrog siab packing ceev; nyob rau hauv xyoo tas los no tau siv los "fold" multi-theem pretreatment mus rau hauv ib tug ntau compact kauj ruam. Haum rau qhov chaw- txwv cov nroj tsuag.

Submerged: lub membrane yog immersed nyob rau hauv lub tank, ua dej los ntawm suction thiab tswj fouling los ntawm aeration. Haum rau cov dej ntws loj nrog cov khib nyiab siab dua; lub zog thiab hneev taw yog kev lag luam - tawm.

Kev sib txuas cov qauv-raws li qhov ntsuas, qhov chaw, thiab dej zoo- mus rau hauv ib chav ua tiav ntawm "cov khib nyiab + cov twj tso kua mis + rov qab ntxuav / ntxuav chav tsev + cov cuab yeej hauv online," thiab tom qab ntawd txiav txim siab ntawm pej xeem- cov ntaub ntawv tsim thiab ntim khoom, yog lub luag haujlwm tseem ceeb ntawm kev sib koom ua ke.

5. Automation thiab kev soj ntsuam online

Txawm hais tias lub kaw lus ceramic tuaj yeem khiav "unmanned" nyob ntawm seb qhov kev ua haujlwm zoo li cas. Kev koom ua ke niaj hnub no feem ntau suav nrog:

PLC tsis siv neeg thim rov qab tswj: tshwm sim los ntawm qhov sib txawv siab, flux, los yog lub sij hawm -singly los yog nyob rau hauv ua ke - tsis muaj phau ntawv.

Online SDI / turbidity xyuas: tsis tu ncua xyuas seb cov khoom lag luam puas tseem nyob hauv RO's "zoo li thaj tsam," ntes qhov tsis txaus ntseeg thaum ntxov.

Chaw taws teeb O&M tswj: xa cov ntaub ntawv kev khiav hauj lwm rov qab rau kev kuaj mob tej thaj chaw deb thiab ceeb toom ntxov, txo qhov chaw mus ntsib.

Containerized kev koom ua ke: ntim tag nrho cov teeb rau hauv lub thawv rau kev xa tawm sai, hloov chaw, haum rau cov xwm txheej sab nraud thiab xwm txheej ceev.

Automation tsis yog rau kev qhia tawm; nws converts cov ceramic membrane lub cev kom zoo dua - sib sib zog nqus, rov ua kom huv si - mus rau hauv ruaj khov, kwv yees ua tau zoo. Qhov ntawd tseem ceeb tshwj xeeb tshaj yog rau cov khoom noj uas hloov tau zoo li dej hiav txwv.

6. Yog vim li cas Inline Coagulation feem ntau ntxiv: TEP thiab nplaum Organics

Cov dej hiav txwv muaj cov khoom tshwj xeeb "nplaum" cov khoom -pob tshab exopolymer hais (TEP) thiab cov organic teeb meem. Lawv tsis tuaj yeem cuam tshuam los ntawm kev yooj yim sieving; es tsis txhob lawv yooj yim tsim ib txheej nplaum ntawm daim nyias nyias thiab maj mam rov qab los. Hauv kev xyaum,inline coagulation(siv ib qho me me ntawm cov hlau lossis txhuas ntsev) yog siv los flocculate lawv mus rau hauv cov khoom loj dua rau cov khoom siv ceramic los cuam tshuam. Cov kauj ruam no tsis yog "gilding lub lily"; nws yog tus yuam sij rau hloov "irreversible fouling" mus rau "reversible fouling" ntau npaum li sai tau. Vim tias nws zam kev tu, cov ntaub nplaum ceramic tuaj yeem nqa tau raws nraim qhov kev sib xyaw ua ke ntawm "hnyav pretreatment + hnyav tu."

6.1 Coagulant Dosing: "Tsuas yog," Tsis yog "Overkill"

Inline coagulation yog qhov zoo, tab sis cov koob tshuaj yuav tsum tau txwv. Tsawg dhau, thiab cov nplaum organic yeej tsis flocculate tag nrho, fouling daim nyias nyias lawm; ntau dhau lawm, thiab cov floc ntau dhau los ua ib qho ntxiv fouling load thaum tsav tsheb nce nqi tshuaj thiab sludge ntim. Hauv kev xyaum, kev sim lub thawv los yog tus tsav feem ntau yog khiav ua ntej kom pom lub qhov rais uas "tsuas yog flocculates TEP thiab organics," ces scaled mus rau inline dosing. Nco ntsoov: coagulation yog ib tug pab, tsis yog cov hlau lead; cov hlau lead yog ib txwm cov ceramic membrane qhov ruaj khov tsis lees paub thiab kev huv.

Duab: Cov khoom siv tsev neeg thiab cov qauv ntawm cov ntaub ntawv ceramic: alumina txhawb + zirconia / titanium-doped txheej sib cais + hydrophilic nto, sib xws rau nws cov corrosion kuj, fouling tsis kam, thiab lub neej ntev hauv dej hiav txwv (piv txwv li; hloov tau nrog cov khoom siv tiag tiag SEM duab).

7. Methodological Summary

Nyob rau sab txheej txheem, nco ntsoov:ua ntej ua qhov sib npaug dej, tom qab ntawd faib cov dej zoo, thiab thaum kawg suav lub sijhawm them rov qab.

Dej sib npaug: txiav txim siab kom muaj peev xwm thiab cov khoom siv -dej xav tau, tom qab ntawd ua haujlwm rov qab kom phim cov nplai ntawm cov ceramic membrane thiab RO.

Dej- kev faib tawm zoo: txhais cov qib uas SDI, turbidity, thiab biomass yuav tsum raug txo kom tiv thaiv RO, thiab nyob rau hauv lub hauv paus tau teem lub ceramic membrane qib (microfiltration los yog ultrafiltration) thiab pretreatment (txawm yog xav tau coagulation).

Kev xam nyiaj rov qab: Cov khoom siv rov qab siv dua, cov tshuaj CIP, thiab poob poob rau hauv TCO.

Nyob rau hauv qhov system integration rauceramic membranes rau seawater pom, Taihe Environmental Protection tau hais txog qhov ua tiav kev ua haujlwm ntawm "hla- ntws + rov qab + CIP + xaiv inline coagulation," thiab tso cov khoom siv hluav taws xob kom ruaj khov ntawm RO- txoj haujlwm raug - kom tag nrho seawater desalination kab yog ob qho tib si ruaj khov thiab kev lag luam. Xaiv txoj hauj lwm zoo thiab khiav txoj kev sib dhos yog qhov tseem ceeb tshaj qhov kev nyuaj siab tshaj "qhov twg daim nyias nyias yuav."
